Warm ocean is Rapidly Melting Antarctic Ice Shelf


Dotson ice shelf thinning

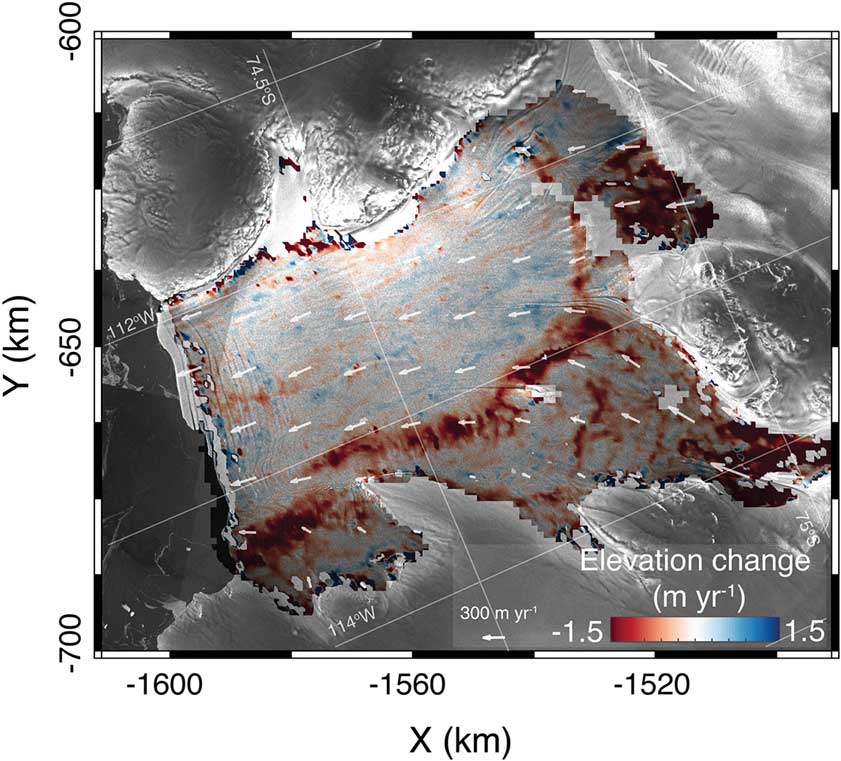

Rates of surface elevation change of the Dotson Ice Shelf. Lagrangian rates of surface elevation change between 2010 and 2016 from CryoSat-2 altimetry. Background shows Sentinel-1 radar images. Ice surface velocity is shown (white arrows).

A new study grants us a bit of further insight into how a warming ocean is impacting the Antarctic. Entitled “Channelized Melting Drives Thinning Under a Rapidly Melting Antarctic Ice Shelf“, it was published a few days ago in Geophysical research Letters (full open access). It describes how the ocean is eating away underneath the Dotson ice shelf.

Their quick summary is as follows …

Ice shelves act as safety bands around the Antarctic ice sheet. Many ice shelves are currently thinning, leading to acceleration of the grounded ice behind. Here we show that ice shelves’ thinning is stronger along a channel structure formed by the ocean circulation under the ice shelf. The thinning is 3 times higher than the ice shelf’s average, hence leading to a more rapid weakening of the ice shelf. This study provides evidence of basal melt-driven sub-ice shelf channel formation and its potential for accelerating the weakening of ice shelves.

Key Points

  • Antarctic ice shelves have been thinning substantially over the last 25 years
  • A significant proportion of ice shelf thinning has been driven by submarine melting
  • The study specifically focused on the Dotson ice shelf …
    • Between 1994 and 2012, DIS (Dotson Ice Shelf) thinned at a constant rate of 2.6 m yr
  • Understanding how the Dotson Ice Shelf thins and is melted by the ocean is critical to predicting the future contribution to sea level of the grounded ice draining through Kohler and Smith glaciers.
  • Ice shelves play a significant role in stabilizing the ice sheet from runaway retreat

What exactly did they do?

The looked at radar data that had been gathered via satellite …

we generate a new elevation dataset using CryoSat-2 interferometric-swath radar altimetry acquired from 2010 to 2016

and also …

radar observation by the European Space Agency Sentinel-1a mission between 2013 and 2016

… then blended it all together so that what is going on becomes a lot clearer.

That then reveals that underneath there is a reverse canyon that has been carved out by the ocean underneath the ice.

Why a channel, why not the entire ice shelf?

Well basically because it is …

a straightforward consequence of ocean physics: warm water, originating at depth and becoming buoyant due to melt freshening, flows along the ice shelf bottom and is guided to the left by Coriolis forces. Ocean circulation and ice thinning then self-organize to yield the thinning pattern observed.

An Illustration

There are a couple of terms worth defining to help clarify their diagram below …

  • DIS = Dotson Ice Shelf
  • DISC = DIS Channel

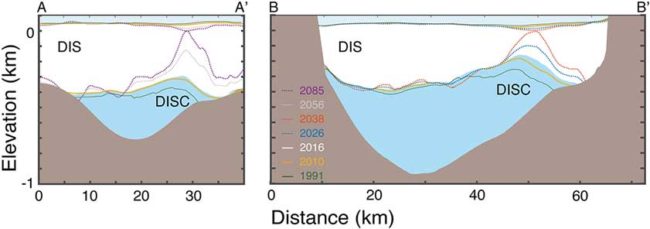

Observed and projected thickness evolution of the Dotson Ice Shelf. Between 2010 and 2016 DIS has lost an average of 7 m of ice along the DISC with very little thinning elsewhere with the exception of the KG grounding line. Elevation change from lower resolution observations between 1991 and 2010 (green solid line) show that thinning at DISC has been taking place over the last 25 years. Colored dashed lines are a simple projection of ice thickness across the channel (see Figure 1c for location) if current thinning rates were to persist.

Understanding the ongoing trend enables them to then look ahead and see how this will play out.

Basically …

  • If there was no channel and things just proceeded via normal thinning, then the ice shelf would thin to zero in about 170 years.
  • However, because the channel exists and is rapidly eating away into the ice shelf, it will reach a point of ice shelf collapse in about 40 year.

That is just a linear progression to zero. It is perhaps also inevitable that as the thinning proceeds, the dynamics of it all will change and lead to an acceleration of the now inevitable collapse of the Dotson ice shelf.

Implications

The paper concludes as follows …

we find here that channelized thinning is sustained from the grounding line up to the ice shelf’s calving front and is caused by elevated basal melting located on the Coriolis-favored side of the channel forced by ocean circulation within the subshelf cavity. The subshelf channel incises 100 to 200 m into the shelf and exceeds in place the thickness of the ice above; if current thinning rates persist, the channel would melt through by the end of the century. It is however likely that the ice shelf will respond to the imbalance before this occurs, potentially leading to an extension of the region of thinning, increased calving or potential collapse although the nature of this response is uncertain. Whatever the type of response, continued thinning and or collapse of DIS, it will lead to increase discharge of the grounded ice draining into the Dotson and Crosson ice shelves.

This is just one study that adds to the ever increasing mountain of evidence that a warming climate leads to rather dire consequences over longer periods of time. This is what is happening right now, and has been happening for the past 25 years, within the context of the current warming that has already happened. If no further warming happened, then this will still proceed as projected. Once gone, that then in turn leads to a runaway retreat of the glaciers buttressed by the ice shelf and the associated sea level rise over a longer period.

What is rather obviously disturbing about all of this is that as the pace of warming continues to accelerate, that in turn will accelerate this process.

Further Reading

Chris Mooney writes about this study within the Washington Post. There they also have the following clip …
